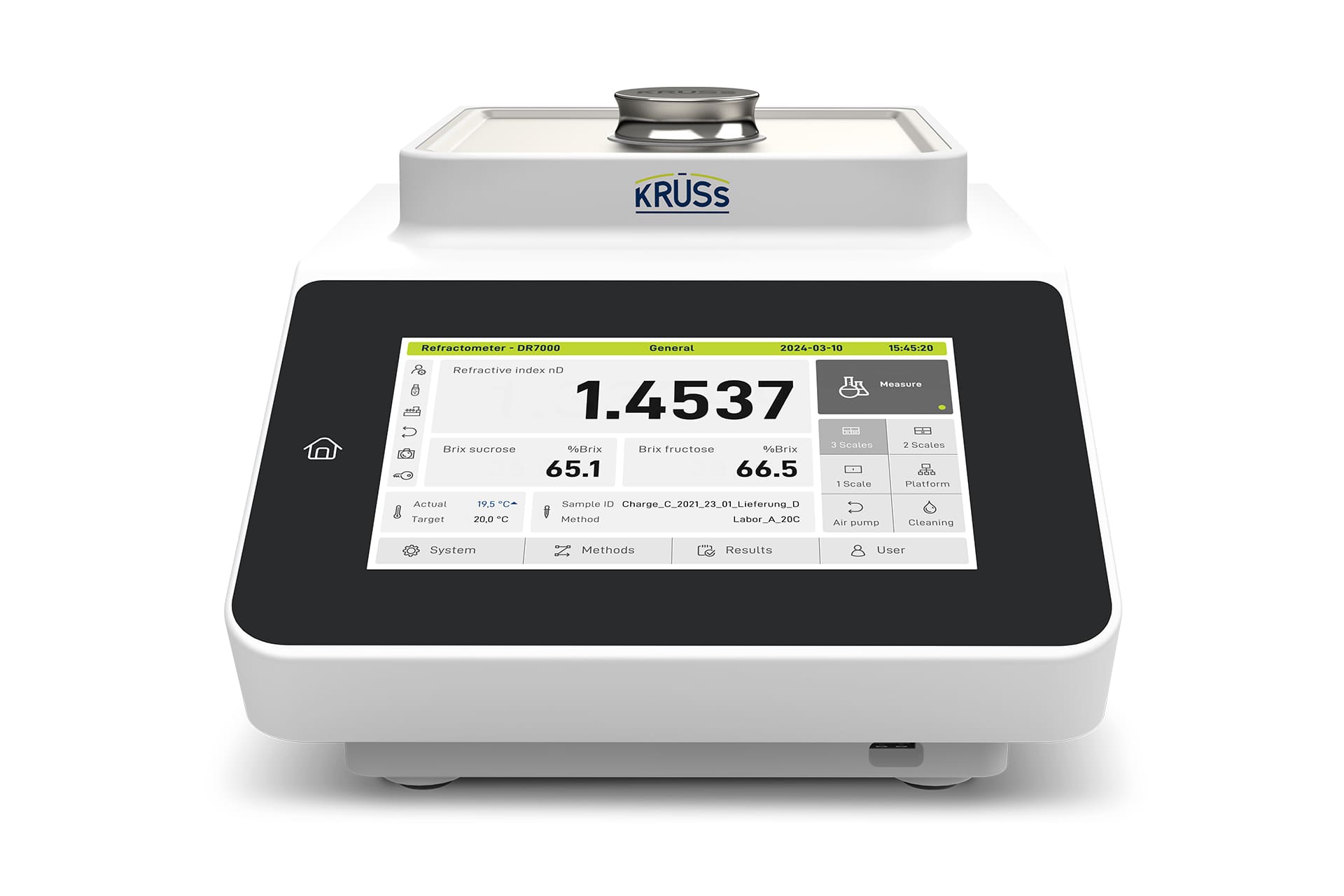

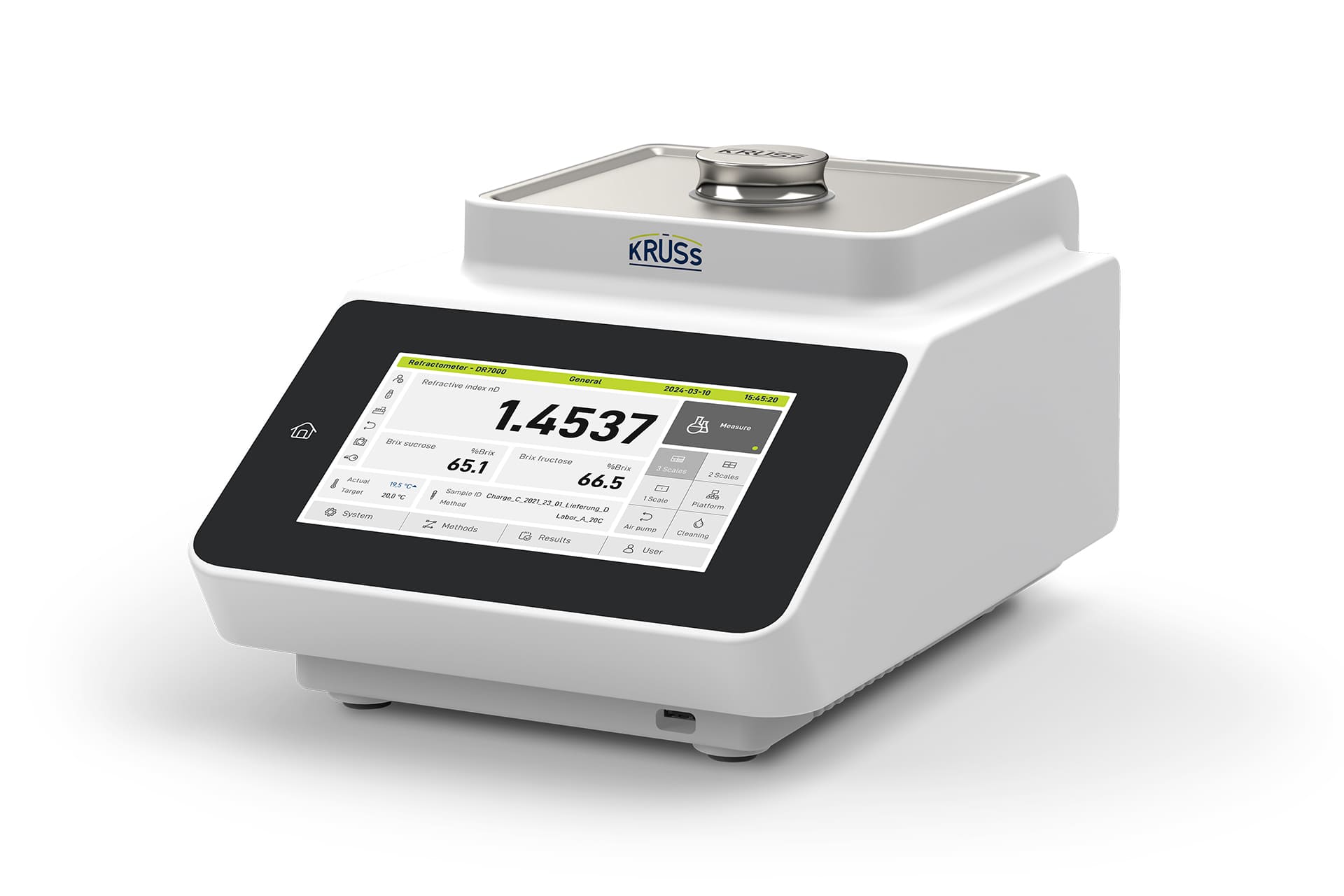

Digital refractometer DR7100-P
6.190,00 €
excl. VAT
+ Shipping costs
Ab Lager lieferbar
Measurement range: nD 1.3000-1.5800; 0-95%Brix;
Temperature control range: 10-60°C
The digital refractometers of the DR7000 series stand for precise digital measurement technology at the highest level. the devices are developed for the reliable determination of refractive index, %Brix and other concentrations in liquid samples.
With its high‑end feature set – comprising an optical CCD sensor, Peltier temperature control, powerful measurement and evaluation electronics, and an intuitive touch display – the laboratory refractometer brings together all components required for reproducible and stable measurement results. Operation is carried out entirely directly on the device; an external PC or additional software is not required.
Depending on the model, the DR7000 series laboratory refractometers with their firmware meet all requirements for FDA-regulated areas as well as the requirements of the European (Ph. Eur.) and American (USP) Pharmacopoeia. The DR7200-P and DR7400-P models also comply with the strict guidelines of 21 CFR Part 11 and EU Annex 11, making them ideal for use in quality-critical, regulated environments.
Video laboratory refractometer
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationAdvantages
Digital laboratory refractometer developed for efficient work
- Capacitive 7-inch touch display for a brilliant display and precise input
- Intuitive, interactive user interface – optionally in several languages
- Operation via keyboard and/or PC mouse
- Menu-guided, easy-to-understand adjustment – safe, fast and accurate
- Any number of user profiles possible – clear rights and clear assignment of users
- Export to password-protected network folder (PDF, A-format, CSV) or USB stick
- Digital laboratory refractometer with help and explanations “on board” for operation without a manual
Measurement: Perfection in detail - precision in results
- Pre-installed scales: Refractive index, %Brix sucrose; customized scales are available
- Precise Peltier temperature control and measured value preview updated every second.
- Laboratory refractometer with single, interval or continuous measurement (small sample volume of < 0.3ml)
- Automated conversion to any measurement variables and scales. Up to three scales are visible simultaneously during the measuring process
Laboratory refractometer with innovative assistance systems
- TempGate®
The set sample temperature control is continuously monitored by the TempGate® functionality. An LED ring around the sample well indicates that the digital refractometer is ready to measure.
- Measurement Stability Check – MSC
This function can be used to check the stability of the measured value during an ongoing measurement. Only values that meet the set stability criteria are saved.
- Dynamic Temperature Control – DTC
A digital laboratory refractometer that temperature-controls samples fully automatically and homogeneously. The desired accuracy of temperature control can be set using the DTC function. This means that temperature control and measurement periods are optimally adapted to the sample and reduced to a minimum.
Digital laboratory refractometer with powerful measuring functions
- Large temperature control range: 10°-60°C
- Large measurement range: nD 1.3000-1.5800; 0-95%Brix
- User accounts: >10000
- Methods: >1000
- Measured data storage > 1 000 000
Sophisticated technology for maximum reliability
- The ventilation unit is hermetically separated from the optics and electrons. This protects the laboratory refractometer from dust and other environmental influences and ensures long-term, low-maintenance operation
- Low-noise, intelligent waste heat control and ventilation control. Device volume <10 dB (temperature control range 15°C-30°C)
- Modular interchangeable flow-through cell with flat measuring trough for quick cleaning
Conformity that creates trust
- The digital refractometer is compliant with standards, norms and guidelines such as ASTM / DIM / ICUMSA / NIST / OIML
- Complies with the requirements of national & international laws and guidelines such as pharmacopoeias (EU / USP / JP / BP)
- Meets requirements for reproducibility and traceability of test results with proven and optimized procedures in accordance with industry-standard GAMP / GMP guidelines
Data integrity that strengthens your quality processes
- Digital laboratory refractometer with multi-level user management
- Extensive password settings
- Configurable device interfaces
- Tamper-proof measured data and export data (PDF/A)
- The DHCP client enables simple integration into existing password-protected networks
| Funktionen für Datensicherheit | ||||
|---|---|---|---|---|
| Datenausdruck | GxP-konformer Ausdruck von Daten und Geräteeinstellungen, vollständig rückverfolgbar | |||
| Manipulationssicherheit | Manipulationssicherheit durch individuelle Autorisierung der Zeit- und Datumseinstellung | |||
| Datenübertragung | Datenübertragung mithilfe von Standardprotokollen (LAN, network share protocoll) | |||
| Eindeutige und nicht verwechselbare Zuordnung von Benutzerkonto | ||||
| Benutzerkonten | Erstellung und Identifizierung von Benutzerinnen und Benutzern auf drei vordefinierten Ebenen (User, Application Administrator, System Administrator) | |||
| Benutzerkonten-Login | Jedes Benutzerkonto besitzt eine einzigartige Kombination aus Namen und Login-Information, um das Benutzerkonto korrekt und eindeutig zu identifizieren | |||
| Passwort-Sicherheit | Erweiterte Sicherheit durch komplexe Passwörter (Buchstaben, Ziffern, Sonderzeichen) und individuelle, definierte Ablauffristen | |||
| Erweiterte Complience Funktionen | ||||
| Rohdatenzugriff | Möglichkeit auf Rohdaten zuzugreifen und Rohdaten zu speichern | |||
| Funktionen zur vollständigen Nachvollziehbarkeit von Messergebnissen | ||||
| Messwert-Speicherung | Alle Messergebnisse werden zusammen mit allen Methodeneinstellungen gespeichert, damit sind Ergebnisse vollständig nachvollziehbar | |||
| Datenimport und Datenexport | ||||
| Signierter & geschützter Import | Nur Dateien, welche signiert und vom System als zulässig anerkannt werden, können vom System eingeladen und verarbeitet werden | |||
| Schnittstellen Konfiguration |
Es besteht die Möglichkeit die Schnittstellen für Export und Import systemweit festzulegen. Anmerkung: Ist eine Schnittstelle nicht ausgewählt, dann ist ein Export und Import auf diese nicht möglich. |
|||
Installation & service
Service and support - personalized
Direct, expert support from experienced contacts
Up to 3 years warranty
On-site calibration and maintenance service
Maintenance contracts possible on request
Certified installations (DQ/IQ/OQ/PQ) to comply with regulatory and internal requirements
Technical data
| Technische Daten Refraktometer DR7000-Serie | ||||
|---|---|---|---|---|
| Spezifikation | DR7100-P | DR7200-P | DR7300-P | DR7400-P |
| SKALEN |
Brechungsindex (nD) Konzentration von Saccharose, (%Brix) Benutzerdefiniert (unbegrenzt) |
|||
| MESSBEREICH |
nD 1,3000 – 1,5800 0–95 %Brix |
nD1,3000 – 1,5800 0–95 %Brix |
nD 1,30000 – 1,72000 0–95 %Brix |
nD 1,30000 – 1,72000 0–95 %Brix |
| MESSGENAUIGKEIT 1) |
nD ±0,0001 ±0,1 %Brix |
nD ±0,00002 ±0,02 %Brix |
||
| AUFLÖSUNG |
nD 0,0001 0,1 %Brix |
nD 0,00001 0,01 %Brix |
||
| AUDIT TRAIL FUNKTIONALITÄT | Keine | Vollständig vorhanden | Keine | Vollständig vorhanden |
| MESSZEIT 3) | Ca. 2 Sekunden | |||
| MESSPRISMA | Saphir | |||
| LICHTQUELLE | LED 589 nm | |||
| PROBENVOLUMEN/FÜLLMENGE | ≈ 0,3 ml | |||
| PROBENBERÜHRENDE TEILE | Saphir, PTFE und Edelstahl 1.4404 (X2CrNiMo 17-12-2) | |||
| Temperaturdaten | ||||
| Spezifikation | DR7100-P | DR7200-P | DR7300-P | DR7400-P |
| TEMPERIERUNG | Integrierte Peltier-Probentemperierung | |||
| TEMPERIERBEREICH 2) | 10–60 °C | 10–80 °C | ||
| TEMPERIERGENAUIGKEIT | ±0,1 °C | ±0,1 °C | ±0,03 °C | ±0,03 °C |
| TEMPERATURKOMPENSATION |
Automatische Temperaturkompensation für %Brix nach ICUMSA wählbar Optionale kundenseitige Temperaturkompensation ist erstellbar |
|||
| TEMPERATURMESSUNG | Mit integriertem Temperatursensor Pt100 | |||
| TEMPERATURMESSBEREICH | 10–80 °C | |||
| TEMPERATURMESSGENAUIGKEIT | ±0,1 °C | |||
| TEMPERATURMESSAUFLÖSUNG | 0,1 °C | 0,01 °C | ||
| UMGEBUNGSTEMPERATUR | 10-40 °C | |||
| UMGEBUNGSLUFTFEUCHTIGKEIT | 10-90 % (nicht kondensierend) | |||
| Geräte Basisdaten | ||||
| BEDIENUNG | Stand-alone Gerät (inkl. Firmware): 7,0 Zoll kapazitiver Touchscreen, 800 x 480 Pixel | |||
| ELEKTRONISCHE SCHNITTSTELLE | 2x USB (2.0; Typ A); 1x RS-232; 1x LAN | |||
| GEHÄUSE | Aluminium, pulverbeschichtet; Schutzart: IP20 | |||
| MAßE (B x H x T) | 230 mm x 170 mm x 360 mm | |||
| GEWICHT | 5 kg | |||
| BETRIEBSSPANNUNG | 90–240 VAC | |||
| LEISTUNGSAUFNAHME | 40 W im Messbetrieb 1) ; 75 W maximal | |||
| BEMESSUNGSFREQUENZ | 50–60 Hz | |||
¹) Under normal conditions for measurement refractive index (λ = 589 nm, 20 °C, 1013 hPa, 50 % relative humidity)
²) For non-condensing ambient conditions
³) After temperature equalization
