Digital handheld refractometer DR301-95
930,00 €
excl. VAT
+ Shipping costs
Ab Lager lieferbar
Refractometer with up to 5 scales, measurement range: nD 1.3330-1.5318;
0-95 %Brix; automatic temperature compensation
Availability: In stock

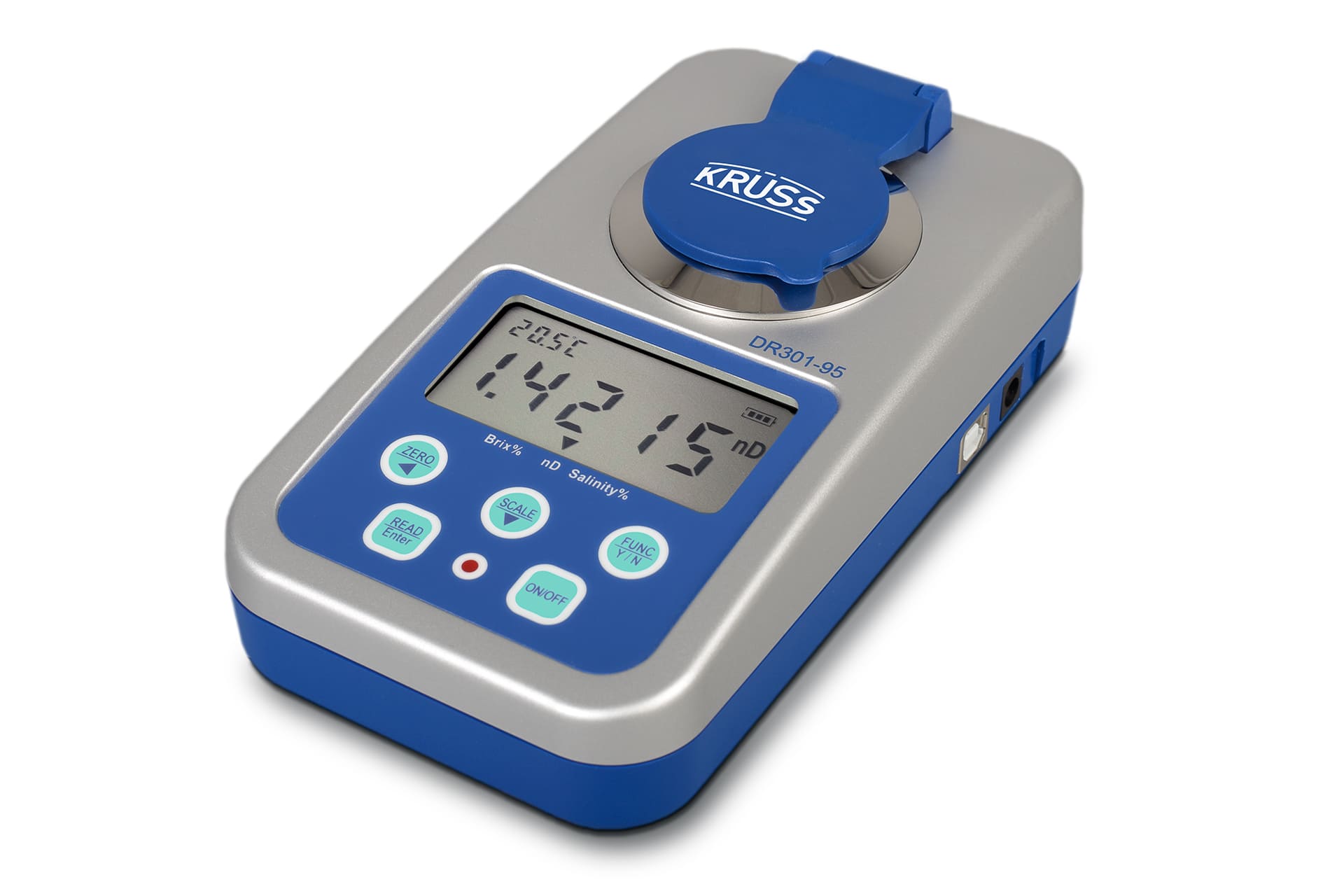

Digital refractometer DR301-95 – Precise measurements for laboratory, industry & on the go
The DR301-95 is both a high-quality mobile refractometer and a simple digital desktop device. In addition to the refractive index and sugar content, it can also measure the salt content (%) (NaCl or salinity). On request, the DR301-95 can be equipped with two further freely selectable scales (e.g. Oechsle, Baumé). Up to 5 measuring scales are possible in one refractometer.
It has a menu control that can be used to switch on automatic temperature compensation – against sucrose – for each scale. An alarm option can be set up for monitoring limit values in production processes.

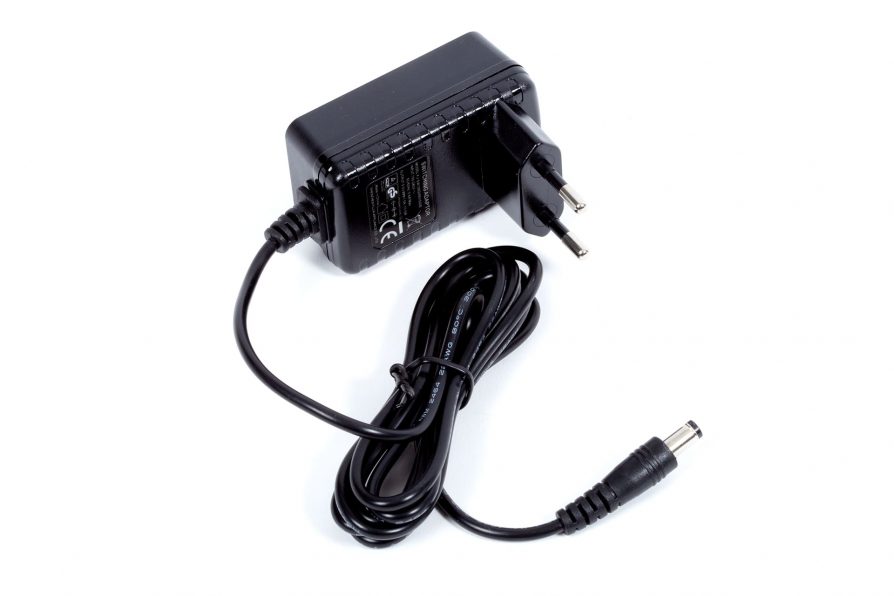

The digital refractometer DR301-95 becomes a stationary laboratory refractometer with the supplied mains adaptor. For mobile use, it can be operated flexibly with a 9 V block battery. Typical areas of application are the food and beverage industry, pharmacies, laboratories, testing offices as well as research and teaching.
Thanks to the additional salt content scale (%), the device is also ideal for measuring salinity. In food production, it is used to analyze the sodium chloride content in brines, canned vegetables, soups and fruit juices.
.
Basic functions
- Measurement range: nD 1.3330-1.5318 and 0-95%Brix
- High measurement accuracy: nD ±0.00015 and ±0.1 %Brix
- Can also be used to determine the salt content (%)
- Reproducible measurements that are not dependent on the user’s interpretation.
- Optionally activatable automatic temperature compensation for all scales
- Quick filling and cleaning
- With high-quality, fully chrome-plated measuring trough
- Robust housing and low device weight
- Operation possible with Mains adaptor or battery
Application Digital refractometers
The DR301-95 digital refractometer enables measurements with up to five different scales and requires only a minimum sample volume. Thanks to its wide measurement range of nD 1.3330-1.5318 and 0-95 % Brix, it is ideal for a wide variety of samples and applications.
Application example food industry
- Valid norms/standards: AOAC, OIML, ASTM, GLP, ICUMSA
- Application: Quality and purity control of raw materials and end products (including convenience products, canned vegetables, soups, fruit juices and brines) also ideal for measuring the salt content (%) on the production line.
- Rapid measurement of alcohol content and determination of sugar concentration (starch hydrolysis products, seasoning sauces)
- Advantage: Portable, handy, light, easy to clean
Application example hospitals and pharmacies
- Valid norms/standards: Pharmacopoeias (BP,JP, Ph. Eur.), GLP
- Application: Outgoing goods inspection or analysis of raw materials. Control of drugs according to Pharmacopoeia (infusion solutions, blood serums, pills, pastes, dialysis preparations) or analysis of body secretions
- Advantage: High reliability, the optional 5 scales can be read digitally.
- The automatic temperature compensation for sucrose can be switched on
Technical data
| Spezifikation | Digitales Handrefraktometer DR301-95 Modell |
|---|---|
| Messbereich |
nD 1,3330–1,5318 0–95 %Brix |
| Messgenauigkeit 1) |
nD ±0,00015 ±0,1 %Brix |
| Auflösung |
nD 0,0001 0,1 %Brix |
| Messzeit 2) | ca. 1 Sekunde |
| Minimales Probenvolumen | 0,3 ml |
| Temperaturmessgenauigkeit | ±0,5 °C |
| Temperaturmessauflösung | 0,1°C |
| Skalen | Brechungsindex (nD), Konzentration von Saccharose (%Brix), Salzgehalt (%), auf Anfrage bis zu zwei weitere |
| Justierung | Über Folientastatur |
| Zusätzliche Funktionen |
Optionale Temperaturkompensation für
10–40 °C Schutzart IP50 |
| Probenberührende Teile | Optisches Flintglas (SF4), vollverchromte Oberfläche |
| Bedienung | Folientastatur |
| Maße (B x H x T) | 180 mm x 100 mm x 60 mm |
| Gewicht | 500 g |
| Betriebsspannung | 9 V (1x9V-Batterie) |
¹) Under normal conditions for measurement refractive index (λ = 589 nm, 20 °C, 1013 hPa, 50 % relative humidity)
²) after temperature equalization
Cleaning tips
The DR301-95 impresses with its versatility and is ideal for frequently changing samples in the laboratory, production and quality control.
The smooth stainless steel sample tray and the high-quality glass prism are designed in such a way that a wide variety of samples can be applied particularly easily. Residues can be removed quickly and completely – even with challenging or highly adhesive sample types.
We have compiled cleaning tips (expert advice) with which refractometers can be cleaned hygienically and are immediately ready for use again.
