Polarimeter-economic-standard-measurements-economic-Kruess_P3000
Polarimeter-oekonomic-quartz-control-plate-Kruess-p3000

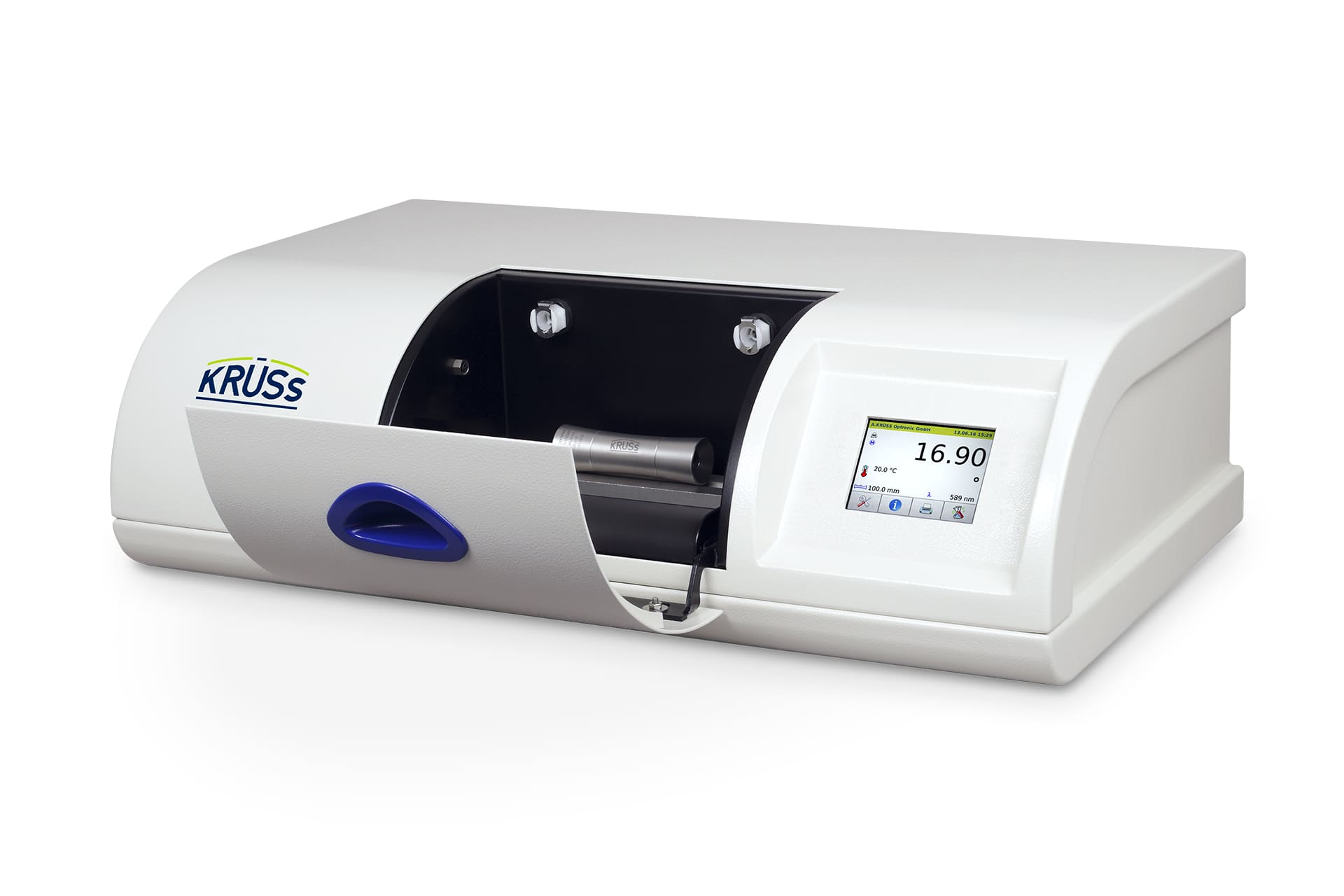

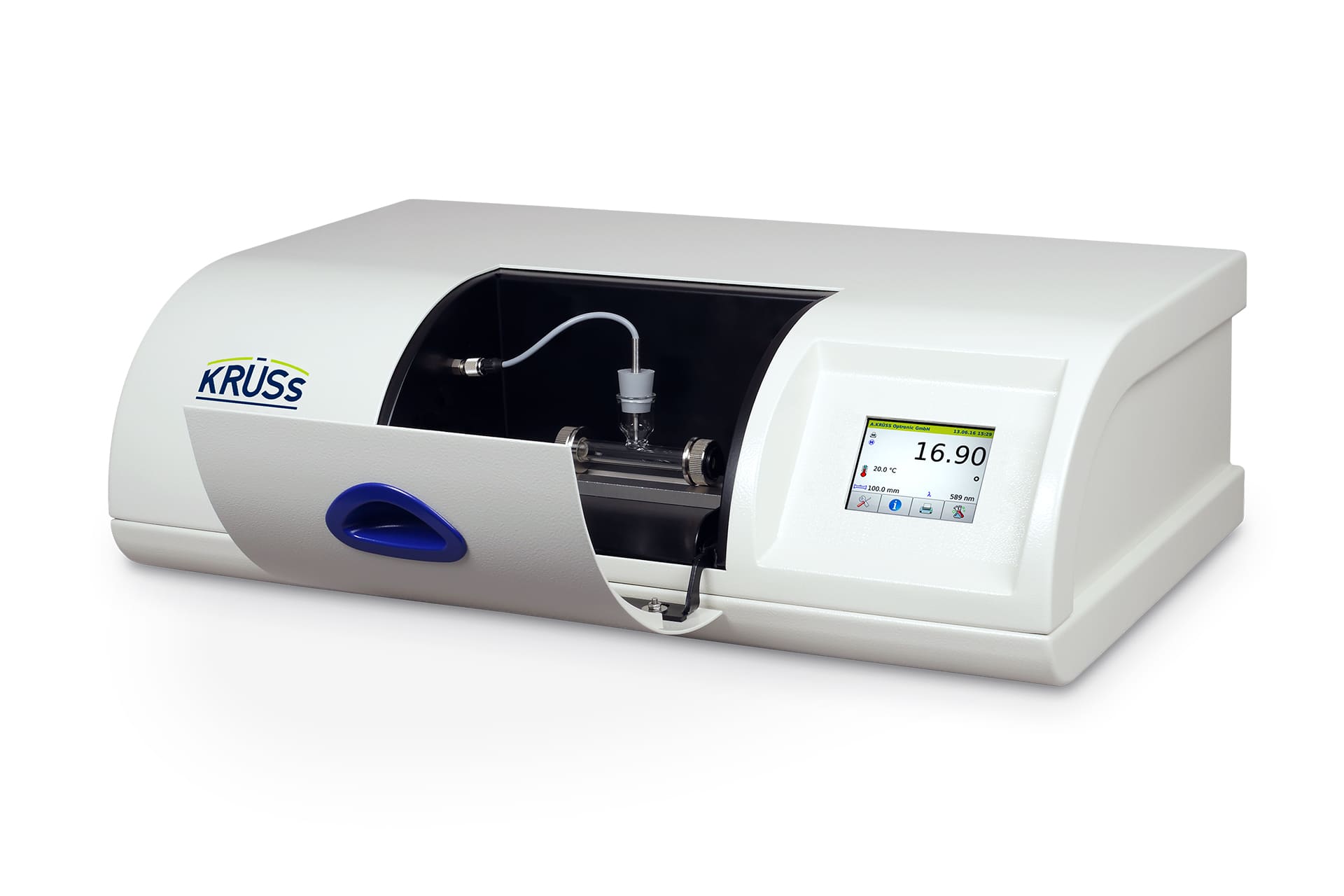

Polarimeter P3000 for standard measurements

Preis auf Anfrage
Angebot anfordern

8.289,00 €

excl. VAT

+ Shipping costs

Ab Lager lieferbar

Economical polarimeter with a measurement accuracy of ±0.01°

- +
Artikelnummer P3000 Kategorie Tags , , ,

The P3000 polarimeter is the economical solution for standard measurements where a measurement accuracy of ±0.01° is sufficient. Measurements are carried out in a record time of less than 2 seconds. The measured values are displayed either as an optical angle of rotation or in the ICUMSA international sugar scale. There is an option to print results on a serial ASCII printer. The reliable temperature compensation makes it possible to measure at any temperature and obtain the value converted to 20 °C.

Basic functions

  • Very simple Operation via 3.5″ touchscreen
  • Easy-to-understand, menu-guided adjustment
  • Measured values are optionally displayed as optical angle of rotation or in the international sugar scale
  • Reliable temperature compensation (ICUMSA pre-installed)
  • Suitable measurement tubes for every type of sample
  • Measurement up to an optical density of 3.0
  • Particularly short measurement period of 1-2 seconds
  • Conformity with Pharmacopoeias [USP, BP, JP, Ph. Eur. (with temperature control)], GLP, ASTM, ICUMSA, NIST

Technical data

Spezifikation Polarimeter P3000-Modell
Skalen Optische Rotation (°)
Int. Zuckerskala (°Z)
Messbereich ±90°
±259 °Z
Messgenauigkeit 2) ±0,01°
±0,01 °Z
Messzeit 2) | 3) 1-2 Sekunden
Auflösung 0,01°
0,01 °Z
Methoden & Benutzer nicht vorhanden
Justierung Automatisch (menügeführt)
Probenberührende Teile Borosilikatglas, PTFE, Edelstahl (1.4305)
Probendurchlässigkeit > 0,1 % (OD3)
Wellenlänge 589 nm
Max. Röhrenlänge 220 mm
Zusätzliche Funktionen Temperaturkompensation
Temperaturdaten
Temperierbereich 1) nachrüstbar
Temperiergenauigkeit 1) nachrüstbar
Temperaturmessgenauigkeit ±0,1 °C
Temperaturmessauflösung 0,1 °C
Temperierung nachrüstbar
Geräte Basisdaten
Bedienung 3.5” kapazitiver Touchscreen, 320 x 240 Pixel Touchscreen, Tastatur
Schnittstellen 1x RS-232
Maße (B x H x T) 645 mm x 200 mm x 360 mm
Gewicht 28 kg
Elektrische Kenndaten
Betriebsspannung 110–250 VAC
Bemessungsfrequenz 50/60 Hz
Leistungsaufnahme
(Messbetrieb) 		30 W
Leistungsaufnahme
(Max.) 		40 W

¹) Requires circulation thermostat PT31/PT80, sample chamber bushing P8020 and temperature-controlled measurement tube

²) Under normal conditions for optical rotation measurement (20 °C, 1013 hPa, 50 % relative humidity)

³) After temperature equalization and at OD < 1

Documents

Calibration standards

Consumables

Accessories
