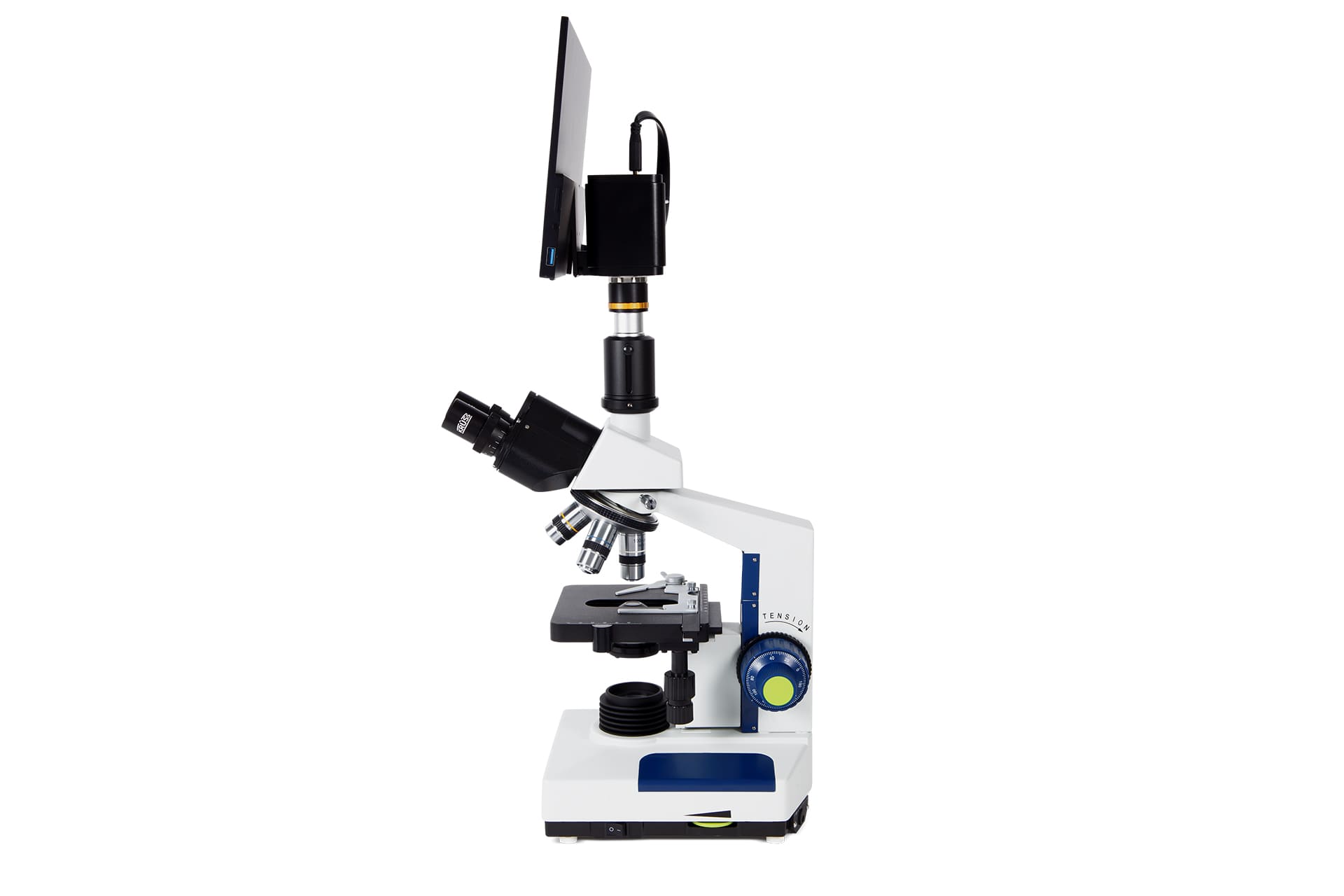

Trinocular microscope set MBL2000-T-LED-SET

The purchase of our microscope sets offers a convenient solution to acquire several products needed for photo and video microscopy in a single purchase. This not only saves the effort of searching for and comparing each product individually, but also reduces the number of deliveries and packages as well as the price. The devices are also perfectly compatible with each other. Set consisting of:

• Trinocular microscope MBL2000-T-LED

• Microscope camera MKVT8

• MKTV display

• C-mount adaptor

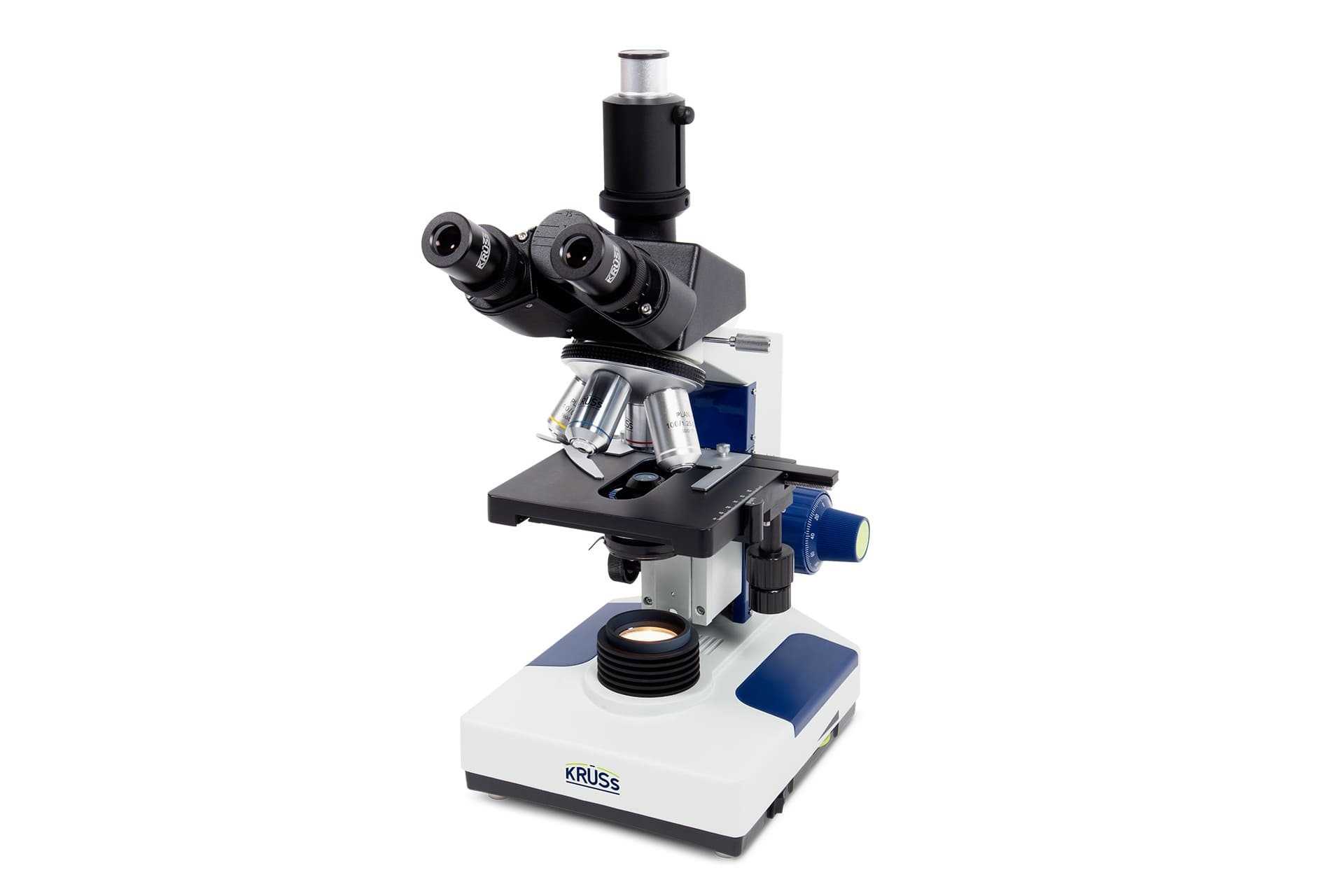

Trinocular microscope MBL2000-T-LED:

The MBL2000 microscope with photo and video tube is robust and universally applicable. In this trinocular microscope, two tubes are used for observation and the third tube holds the camera. These devices also allow you to quickly switch between visual microscopy and microscope photography or video recording. Microscope photography is used when results are to be documented or test series recorded, as is the case in quality control in the food industry, for example. In addition, the MBL 2000 model is ideal in many areas of life science research. In particular, this includes studies on animals, plants, microorganisms and cell cultures, e.g. when investigating pathogens, remedies or reactions to active substances. .

Basic microscope functions

• With photo and video tube
• Dioptre compensation with compensation scale
• Sturdy metal stand with graduated XY mechanical stage enabling coaxial operation and height adjustment
• Coarse and fine drive, coaxial on both sides (0-200 μm, graduation 2 μm), coarse and fine drive range: 30 mm
• Right-hand coarse focusing knob with gear adjustment, left-hand knob with quick focusing device
• Low-voltage illumination with light control and removable pre-condenser
• With LED illumination
• Double-lens ABBE condenser: NA 1.25 with Iris diaphragm
• Glass filter: blue, yellow, green; Retractable filter holder

Microscope camera with 1/1.8” CMOS sensor:

• Resolution of 3840 x 2160 pixels
• USB 3.0 interface for PC connections (cable included)
• HDMI interface (HDMI cable included)
• USB interface for USB mouse or WiFi adaptor (both included)
• Connection to PC via WLAN possible
• Live image, image recording and video function
• Integrated software additional PC software
• Storage of image and video files on SD card, included

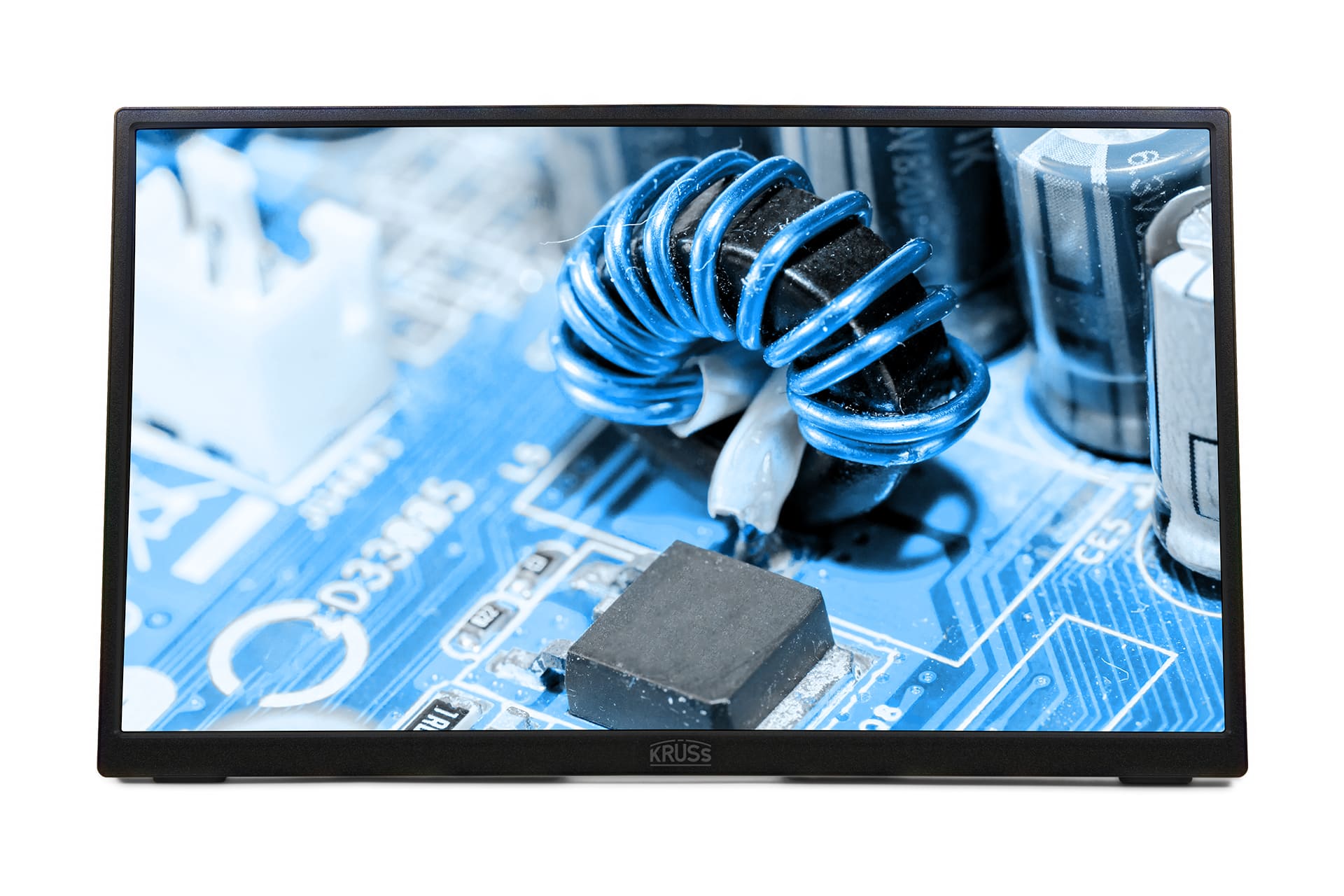

MKTV display – microscopy on the monitor:

• The Full HD display has an HDMI interface for connection to the MKTV camera.
• 11.8” 1080p IPS LC display
• Resolution of 1920 x 1080 pixels (HD)

C-mount adaptor:

• Adaptor with C-mount thread to connect a camera with C-mount thread (MK12 or MKTV8) to a microscope with 23.2 mm Phototube
