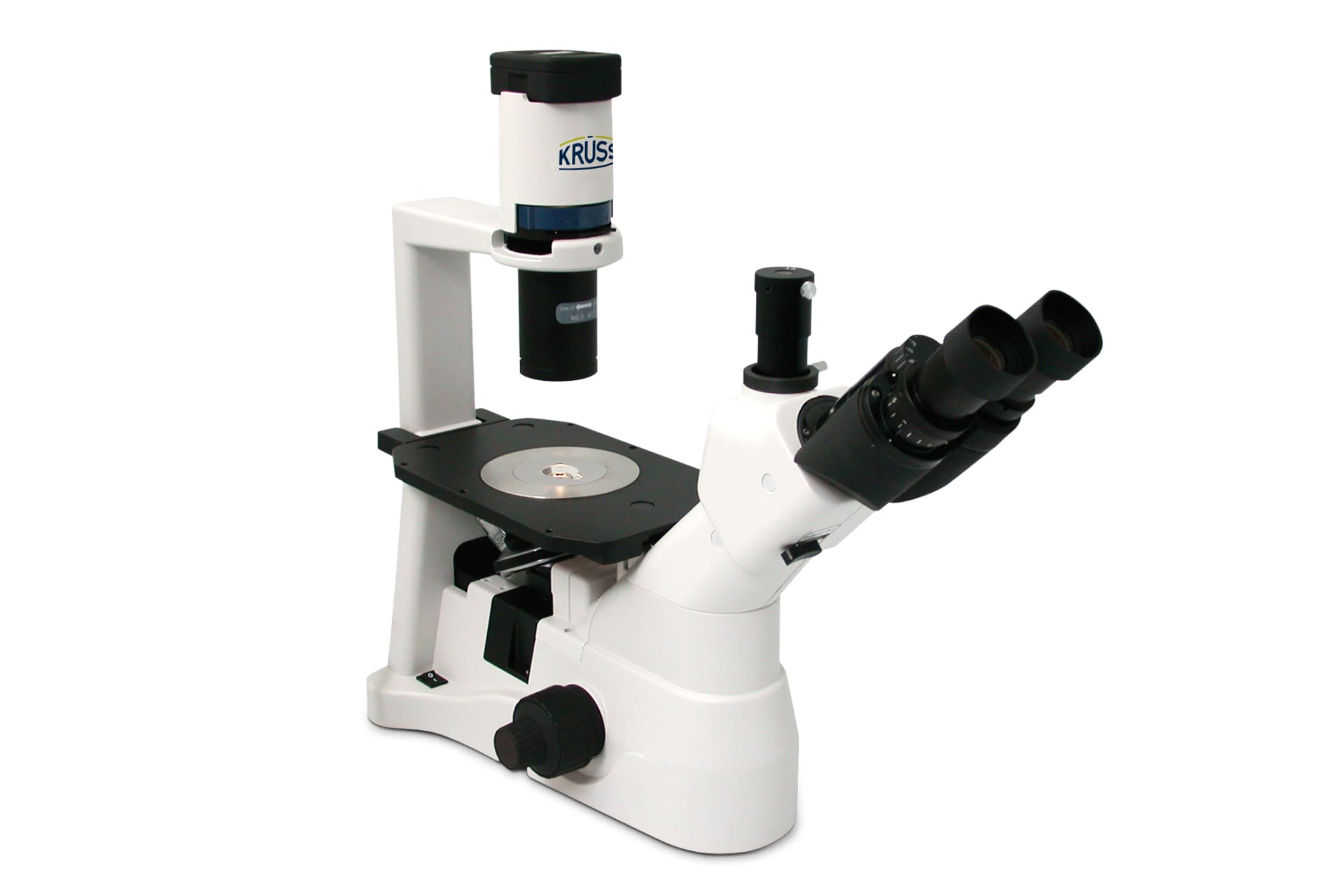

Inverted microscope MBL3200
2.798,00 €
excl. VAT
+ Shipping costs
Ab Lager lieferbar
Microscope for analyzing biological specimens, including Phase contrast, with photo and video tube;
Objectives: 4X, 10X, 20X, 40X
This inverted microscope has been specially designed for identifying and analyzing biological substances and cultures. It is used, for example, in the control laboratories of pharmaceutical production, food production and waste water analysis. This inverted microscope is ideal for examining living cells in Petri dishes or culture chambers. The objectives of the MBL3200 microscope have a large working distance. This makes them ideal for viewing samples through the bottom of Petri dishes, for example, or for examining sediments. SLR, microscope or video cameras can be connected via the Phototube. This makes it easy to carry out examinations for photo or video documentation.
Basic functions
- Large working distance
- Observation in larger containers such as Petri dishes possible
- Suitable for examining living cells and for cell manipulation
- Documentation possible via photo and video camera connection
- Phase contrast device with 20X objectives included
Highlights
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationTechnical data
| Spezifikation | Kenndaten: Invers-Mikroskop MBL3200-Modell | |||||
|---|---|---|---|---|---|---|
| Mikroskopkopf |
Schrägeinblick Symmetrische Augenabstandsjustierung (55–75 mm) Dioptrienausgleich mit Skala Mit Foto- und Videotubus |
|||||
| Okulare | 10X Planokulare; Sehfeldzahl: 22 | |||||
| Objektivrevolver | 5-fach | |||||
| Objektive |
Planachromatische Objektive:
|
|||||
| Kondensor | Doppellinsen-Kondensor (NA 0,3) | |||||
| Beleuchtung | Regelbare Beleuchtung (6 V 30 W) mit Irisblende und Filterhalter (blau und grün enthalten) | |||||
| Kreuztisch | Bewegungsbereich: 118 x 80 mm | |||||
| Stativ | Aus Metall mit koaxialem Grob- und Feintrieb | |||||
| Schutzart | IP20 | |||||
| Maße (B x H x T) | Mikroskop: 300 mm x 490 mm x 570 mm | |||||
| Gewicht | 15 kg | |||||
| Weitere/spezielle Anwendungen |
Phasenkontrasteinrichtung für 20X Dritter Tubus ermöglicht die Nutzung einer Mikroskopkamera |
|||||
| Spezifikation | Temperaturdaten | |||||
| Umgebungstemperatur | 0-40° C | |||||
| Umgebungsluftfeuchtigkeit | 10-90% (nicht kondensierend) | |||||
| Spezifikation | Elektrische Kenndaten | |||||
| Betriebsspannung | 90-240 Volt | |||||
| Bemessungsfrequenz | 50/60 Hz | |||||
Documents
Accessories
-
-

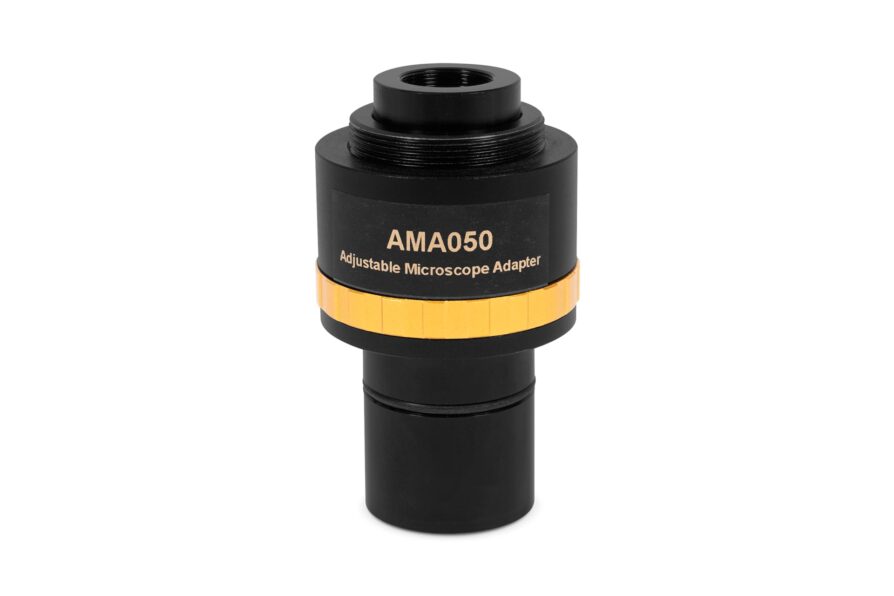

C-mount adaptor with eyepiece
108,00 €C-mount adaptor with eyepiece for microscopes with photo and video tube
-

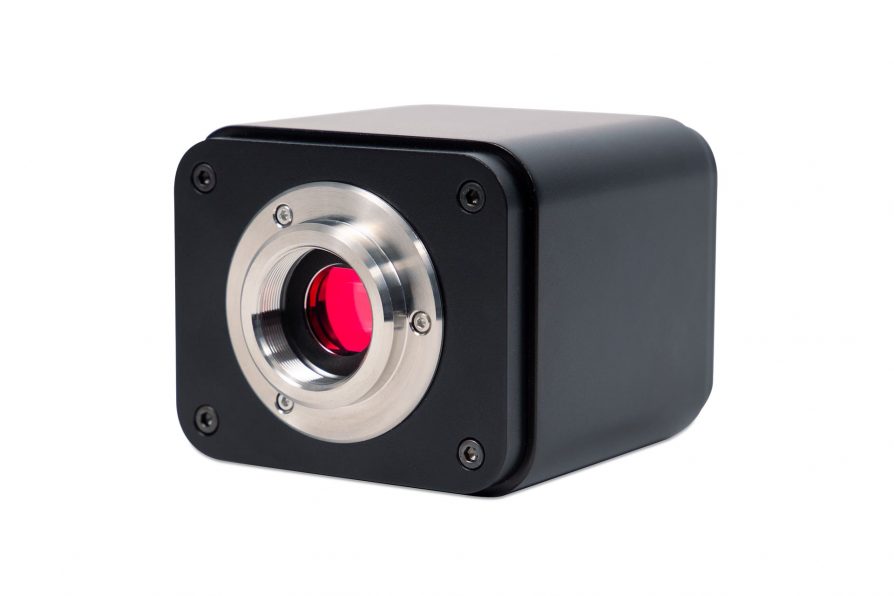

Out of stockMKTV8 microscope camera
832,00 €8.0 megapixel microscope camera with 1/1.8” CMOS sensor, with WLAN connection and SD card
-
-
-
