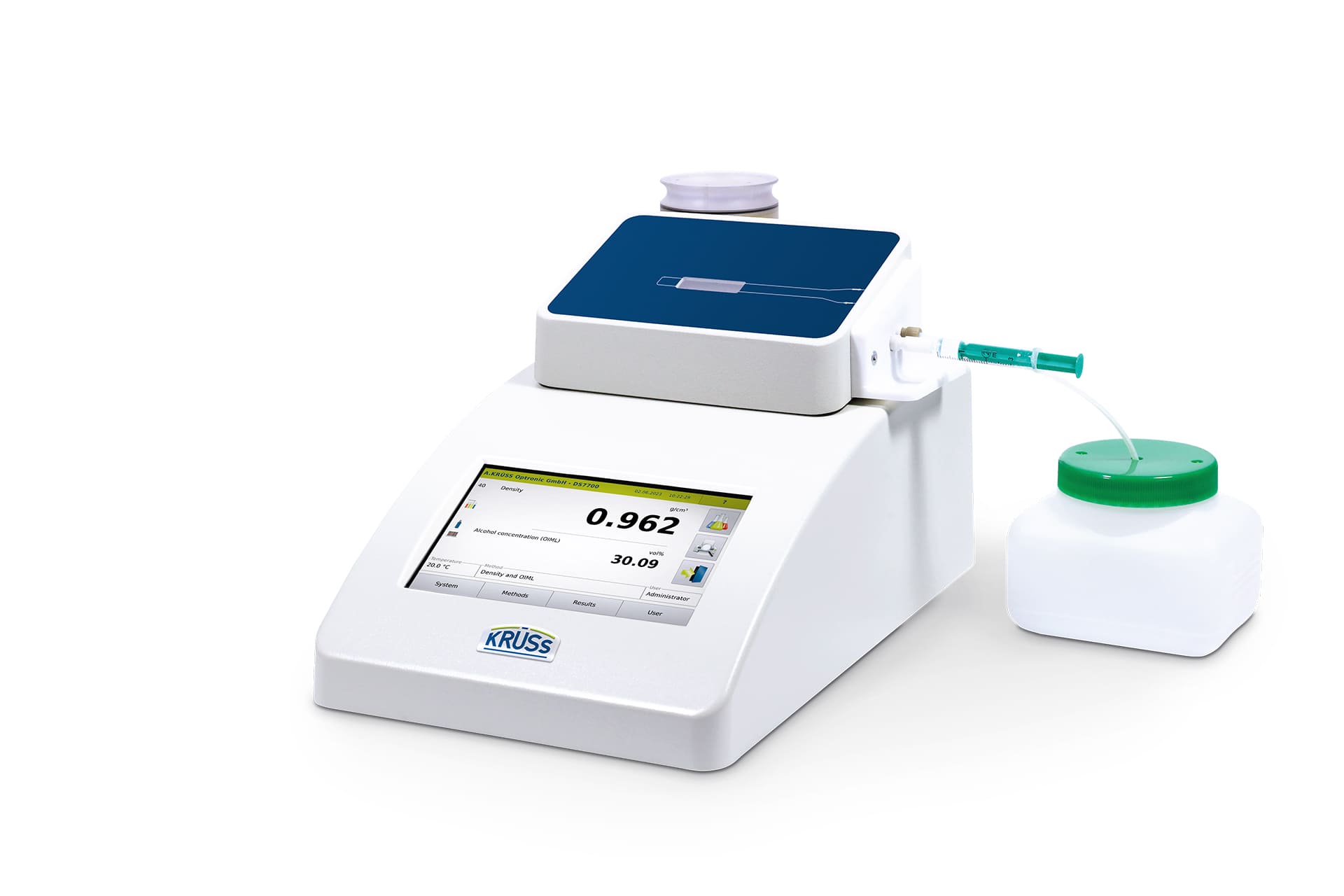

Density meters manual sample supply

These digital density meters for manual sample supply work with the proven oscillating U-tube technology. With these models, low to high viscosity samples are supplied via a Luer syringe. During sample supply, the viewing window is used to check that the filling is free of bubbles. The internal Peltier temperature control ensures a fast and stable sample temperature. For cleaning, suitable solvents are injected until all sample residues are dissolved and removed. All liquid residues are removed from the U-tube oscillator with the aid of the drying unit attached to the instrument. Due to the chemical-resistant sample-carrying parts made of borosilicate glass and PTFE, our density meters are suitable for almost all liquids, emulsions and pastes. The minimum sample volume of the U-tube oscillator is less than 1 ml. Whether density, relative density, Brix, alcohol, sulphuric acid concentration or other user-configured scales, the configuration options are virtually unlimited.

Basic function

• Sample supply and cleaning via Luer syringe
• Suitable for almost all liquids, emulsions and pastes thanks to chemical-resistant sample-carrying parts made of borosilicate glass and PTFE.
• Intuitive Operation via 7.0-inch touch-screen display, 6 languages selectable
• Easy-to-understand, menu-guided adjustment
• Scales such as density, relative density, Brix, alcohol and sulphuric acid concentration are pre-installed; further scales can easily be set up
• Conformity with GMP/GLP, 21 CFR Part 11, pharmacopoeias (USP, BP, JP, Ph. Eur.), FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NIST.
